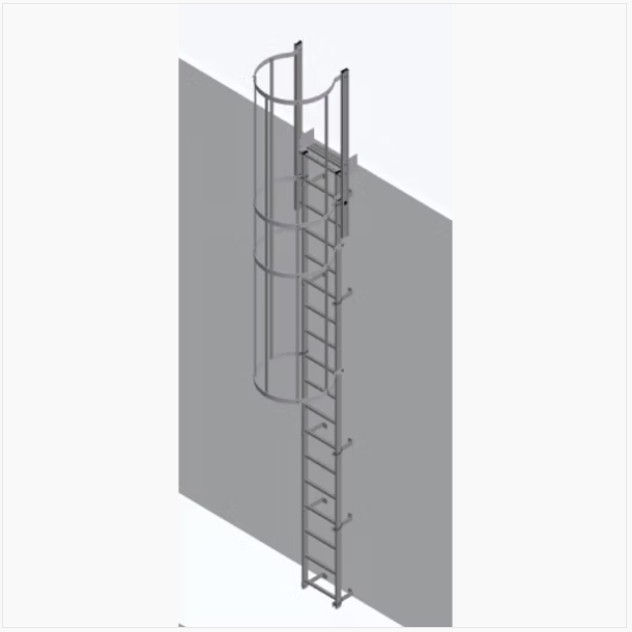

Hymer Roof Access Ladder 9.24m With Hoops And Exit Handrails
The Hymer ARA924H Fixed Vertical Ladder system is flexible, easy-to-install and manufactured to EN 14122-4. The modular fixed vertical ladder system with roof access hoops and exit handrails offers an unrivaled number of design options. So no matter what obstacles you face, we have the ladder solution for you. This single section ladder has a length of 9.24m.
If you need help designing your ladder call us now 01 450 0150 or email your requirements to sales@fixedladders.ie and our friendly staff will be happy to help.
Features
- Sturdy vertical ladder supplied with wall mounting brackets.
- Manufactured in natural Aluminium.
- Ladder width 450mm external / 400mm internal.
- Rung spacing 280mm.
- Square rungs 30 x 30mm.
- Stile dimensions 60 x 25mm.
- Safety Cage Hoop internal diameter 724mm.
- Supplied with standard 200mm deep mounting brackets.
- Deeper mounting brackets (up to 600mm) available on request.
- Expandable modular system options include stile extensions, safety gates etc.
- Manufactured to EN 14122-4, DIN 18799-1 & DIN 14094-1.
Code ARA924H Type Professional Fixed Ladder C/W Roof Access Hoops And Exit Handrail Style Fixed Vertical Ladder Size 9.24m External Ladder Width 0.448m Internal Ladder Width 0.4m Number of Rungs 33 Number of Sections 1 Material Aluminium Ribbed Plug Plastic Section x Rungs (1 x 7) x 1
(1 x 10) x 1
(1 x 13) x 1
(1 x 3) x 1*
Tread Type Square Rung Certifications EN 14122-4 Max. Load (kg) 150kg Guarantee 10 Year *Comes with exit frame.
Note
- Guarantee against manufacture defects in workmanship or materials.
- ARA280H to ARA924H should have safety cage hoops to comply with standard.
- Load includes user, tools, materials etc.
Code
Quantity
Description
1
Ladder Section 1.96m
20000907 1
Ladder Section 2.8m
1
Ladder Section 3.64m
2
Ladder Connector
12
Standard Wall Bracket
1
Narrow Straight Exit C/W Handrails
1
Safety Cage Hoop Narrow Exit
6
Safety Cage Hoop
13
Safety Cage Brace
1
Diagonal Brace
10
Brace Connector
