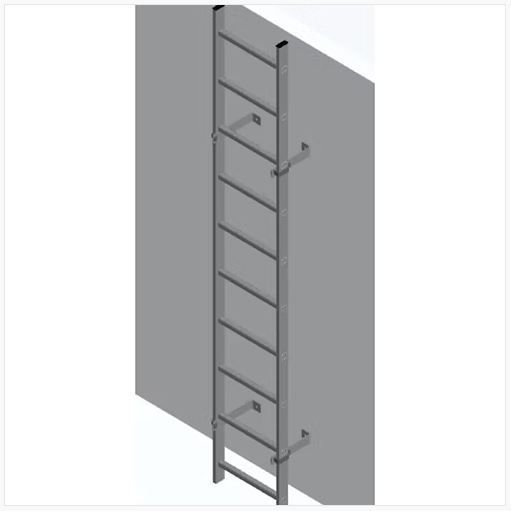

Hymer Fixed Vertical Ladder 7.28m
SKU: ALO728
€904.88Price
The Hymer ALO728 Fixed Vertical Ladder system is flexible, easy-to-install and manufactured to EN 14122-4. The modular fixed vertical ladder system with ladder only, offers an unrivalled number of design options. So no matter what obstacles you face, we have the ladder solution for you. This single section ladder has a length of 7.28m.
If you need help designing your ladder call us now 01 450 0150 or email your requirements to sales@fixedladders.ie and our friendly staff will be happy to help.
- Sturdy vertical ladder supplied with wall mounting brackets.
- Manufactured in natural Aluminium.
- Ladder width 450mm external / 400mm internal.
- Rung spacing 280mm.
- Square rungs 30 x 30mm.
- Stile dimensions 60 x 25mm.
- Supplied with standard 200mm deep mounting brackets.
- Deeper mounting brackets (up to 600mm) available on request.
- Expandable modular system options include safety hoops, stile extensions, safety gates etc.
- Manufactured to EN 14122-4, DIN 18799-1 & DIN 14094-1.
Code ALO728 Size 7.28m Type Professional Style Fixed Vertical Ladder Number Of Sections 2 Material Aluminium External Ladder Width 0.45m IOnternal Ladder Width 0.40m Weight 18.2Kg Foot Material Plastic Section x Rung (1 x 13) x 2 Certification EN 14122-4 Rung Type Square Rung Max Load 150Kg Guarantee 5 Years Note
- Guarantee against manufacture defects in workmanship or materials.
- ALO364 to ALO924 should have safety cage hoops to comply with standard.
- Load includes user, tools, materials, etc.
